Resistance Measurement II PROMET CE

Description

Resistance Measurement II PROMET CE

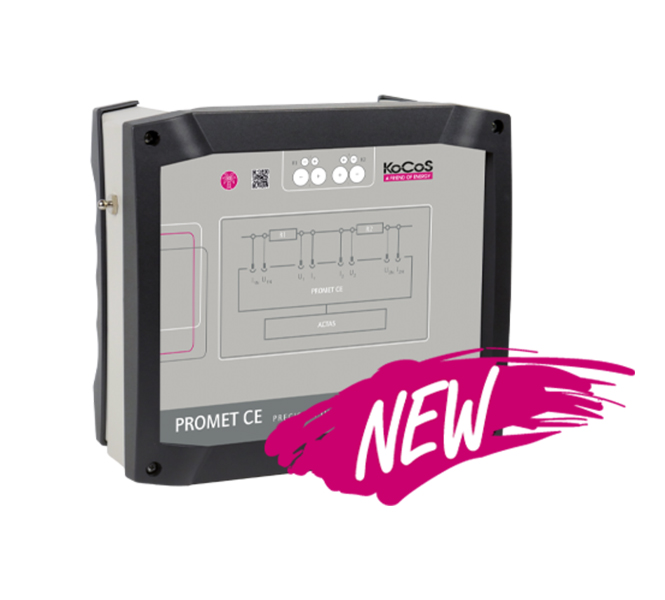

PROMET CE – Circuit Breaker Resistance Measurement

The PROMET CE is an advanced resistance measurement solution designed as an extension for ACTAS C switchgear testing systems. It combines high measurement accuracy with seamless integration into automated testing procedures.

With a constant test current of up to 200 A, the PROMET CE enables precise measurement of electrical resistance in circuit breakers and provides a reliable evaluation of contact condition and switching performance under realistic operating conditions.

Its integration with ACTAS C systems allows resistance measurements to be incorporated directly into automated test sequences, helping improve testing efficiency, consistency, and measurement reliability.

PROMET CE – Integrated Resistance Measurement for Switchgear Testing

The PROMET CE is designed to work directly with ACTAS switchgear testing systems, providing a convenient and efficient solution for resistance measurement. The unit is powered and controlled by the ACTAS system, eliminating the need for separate control equipment or additional power supplies.

All measurement parameters can be configured through the ACTAS testing software, while the resulting data is automatically transferred to the test reports. This streamlined integration allows resistance measurements to become part of complete, automated switchgear test procedures.

Key Features

• Direct integration with ACTAS C switchgear testing systems
• Constant test currents of up to 200 A for accurate resistance measurement and reliable contact-performance evaluation
• Simultaneous testing of up to 12 main contacts in a single test sequence
• Complete switchgear testing without the need for reconnection between individual tests
• Automated test sequences with comprehensive documentation through ACTAS software
• Efficient operation through direct power supply from the ACTAS system
• High measurement accuracy for resistance values in the micro-ohm and milli-ohm ranges

Applications – Resistance Measurement Under Realistic Conditions

With an adjustable test current of up to 200 A, the PROMET CE can be used for a wide range of switchgear resistance measurement applications. Its highly stable current source maintains consistent test conditions, allowing very low resistance values in the micro-ohm and milli-ohm ranges to be measured accurately.

The PROMET CE is particularly effective when combined with dynamic switching tests. It allows contact resistance to be measured and compared under realistic operating conditions, providing valuable information for evaluating the condition and performance of modern switching devices.

Circuit Breaker Condition Assessment

Accurate contact resistance measurement is an important method for evaluating the condition of circuit breakers and other switchgear devices. The PROMET CE helps identify changes in contact behavior that may indicate wear, deterioration, or other potential issues.

Type Testing and Factory Acceptance Testing

PROMET CE provides reliable resistance measurement data for type testing, production testing, and factory acceptance tests. By integrating resistance measurements into the overall ACTAS testing process, manufacturers can verify switchgear performance and ensure that components meet required quality, reliability, and safety standards.
