Protection Relay Testing ll ARTES 600 – Universal Protection Relay Testing Solution

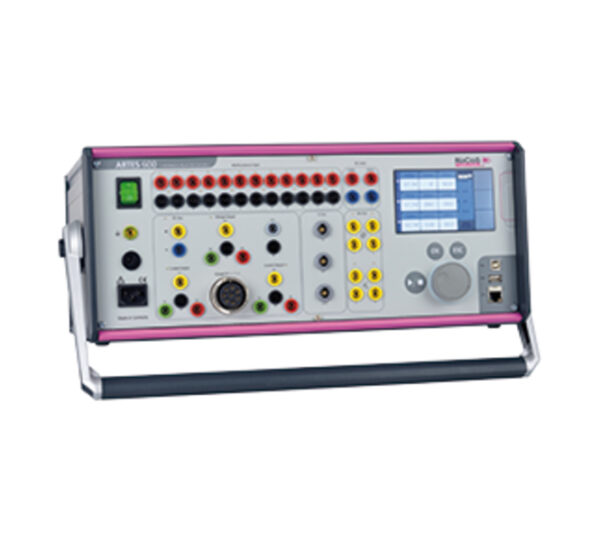

The ARTES 600 is a compact and versatile test system designed for testing a wide range of protection relays. Its integrated control panel, lightweight construction, and low operating noise make it suitable for both on-site testing and laboratory applications.

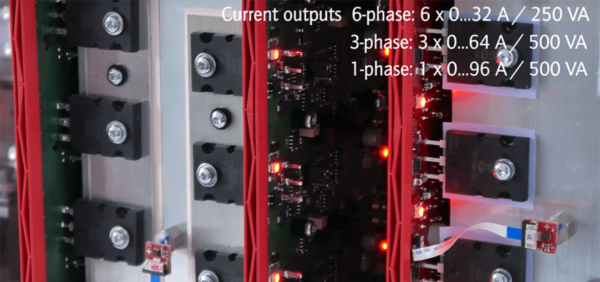

With four voltage outputs and six high-power current outputs, the ARTES 600 can handle demanding three-phase relay testing applications. It supports testing of static, digital, and self-powered protection relays, as well as three-phase differential protection relays without requiring additional equipment.

High Power, Precision, and Versatility

The ARTES 600 combines high output power with precise signal generation and accurate measurement capabilities. Its powerful amplifiers, multifunctional measurement inputs, and straightforward operation make it suitable for professional relay testing applications.

The system is designed to perform complex protection relay tests while maintaining stable and accurate output signals, helping users achieve reliable and repeatable test results.

Integrated TJCP Operator Interface

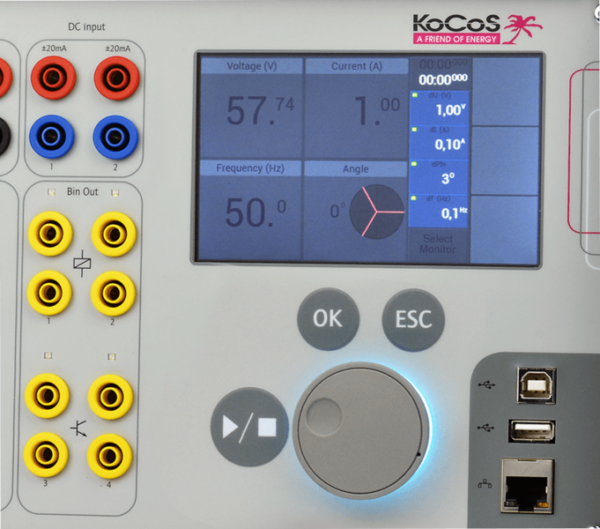

One of the key features of the ARTES 600 is its integrated TJCP operator interface. The high-resolution 5-inch touchscreen with smart-touch functionality allows many testing procedures to be performed directly from the instrument without connecting an external PC.

The clearly organized interface provides intuitive access to test functions and settings. An ergonomic jog wheel allows users to adjust parameters such as amplitude, phase angle, and frequency in real time. Changes are processed immediately, enabling fast and precise test configuration.

An illuminated ring around the jog wheel, together with acoustic signals, provides additional feedback about system status and ongoing test operations.

Advanced Connectivity

The integrated TJCP interface provides multiple communication options for flexible operation and data connectivity. Available interfaces include USB, three Ethernet ports, Wi-Fi, and an integrated GPS receiver.

With its combination of high-power outputs, accurate measurement capabilities, intuitive operation, and versatile connectivity, the ARTES 600 provides a comprehensive solution for protection relay testing in laboratories, substations, and field-service environments.
