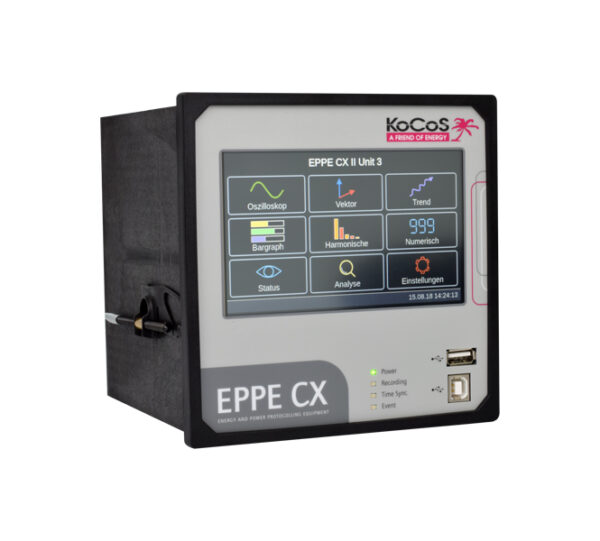

Power Quality Analyzer ll EPPE CX
EPPE CX – Stationary Power Quality Monitoring System
The EPPE CX is a stationary power quality monitoring system designed for continuous and fully automated measurement of electrical parameters. It continuously transfers measurement data to a central system, where the results can be automatically analyzed and evaluated.
An integrated alarm function can immediately notify responsible personnel when abnormal conditions or power quality issues are detected. With flexible measurement configuration, the EPPE CX can be adapted to different monitoring requirements in industrial and electrical power applications.
The system provides measurement inputs for 4 voltage channels, 4 current channels, and 5 additional sensor inputs, making it suitable for comprehensive power quality monitoring.
Key Benefits
The EPPE CX helps users maintain and improve power quality through accurate measurements, reliable software, and advanced monitoring functions. It can assist in:
- Identifying sources of electrical interference
- Monitoring power quality continuously
- Detecting faults and abnormal conditions
- Reducing energy-related costs
- Supporting compliance with applicable international standards
- Providing reliable measurement data for analysis and reporting
- Enabling flexible configuration according to individual requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 4 status LEDs |
| Operating Software | EPPE and SHERLOG software for Windows 7, Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2012 R2 |
| Memory | 32 GB |
| Interfaces | 1 × RS232 / RS485, 1 × USB-A, 1 × USB-B, 2 × 10/100 Mbit Ethernet (RJ45) |
| Supply Voltage | 100–250 VDC / 90–250 VAC, 47–63 Hz |
| Operating Supply Range | +6% / –15% of nominal range |
| Voltage Inputs | 4 × voltage inputs up to 600 VAC / ±848 VDC |
| Current Inputs | 4 × current inputs up to 10 A AC |
| Sampling Rate | 200 kHz per channel |
| Binary Inputs | 16 inputs, common potential |
| Binary Outputs | 6 outputs, common potential |
| Standards | IEC 60255-27, EN 61000-6-2, EN 61000-6-4, EN 61010-1:2011, IEC 61850, IEC 60870-5-103 |
Flexible Measurement and Monitoring
The EPPE CX can be configured according to the specific measurement requirements of the installation. Its combination of high-speed analog inputs, binary inputs and outputs, multiple communication interfaces, and continuous data transfer makes it suitable for detailed monitoring of electrical systems.
