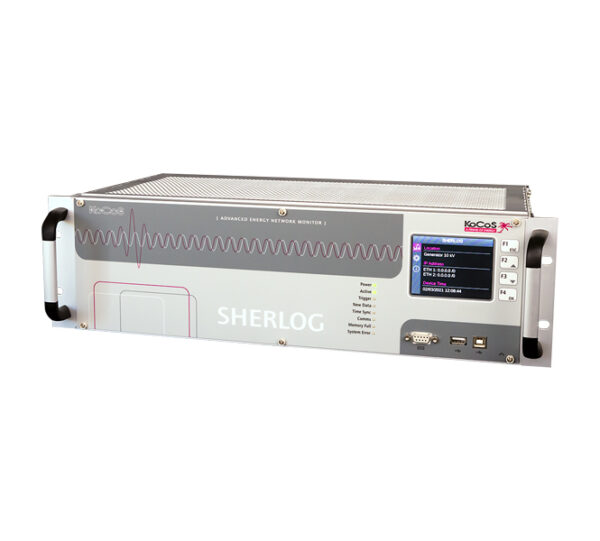

SHERLOG CRX – Configurable Fault Recorder and Power Quality Monitor

The SHERLOG CRX is a modular and scalable fault recording and power quality monitoring system that can be configured according to individual application requirements. Its flexible design allows the system to be expanded or upgraded as monitoring needs increase.

Despite its compact construction, the SHERLOG CRX can support up to 32 analog inputs for AC and DC measurements and up to 128 binary inputs. For large or distributed electrical systems, multiple SHERLOG CRX units can be connected through the integrated Interlink interface, enabling coordinated monitoring across different locations.

Modular and Flexible Configuration

The scalable architecture allows users to select the required measurement channels and system functions based on their specific application. Additional modules can be added when requirements change, making the system suitable for both current and future monitoring needs.

Plug & Play Technology

The integrated Plug & Play technology simplifies system expansion and configuration changes. Additional modules can be installed quickly without complicated adjustments.

Analog measurement modules can also be replaced without lengthy recalibration procedures because the relevant calibration data is stored directly on each module. This helps reduce maintenance time and operational costs.

Equipment Features

• Analog Inputs: 8 to 32
• Binary Inputs: 0 to 128
• Supports both AC and DC measurements
• Modular and scalable system architecture
• Flexible configuration for different monitoring requirements
• Interlink interface for networking multiple units
• Plug & Play module replacement and expansion

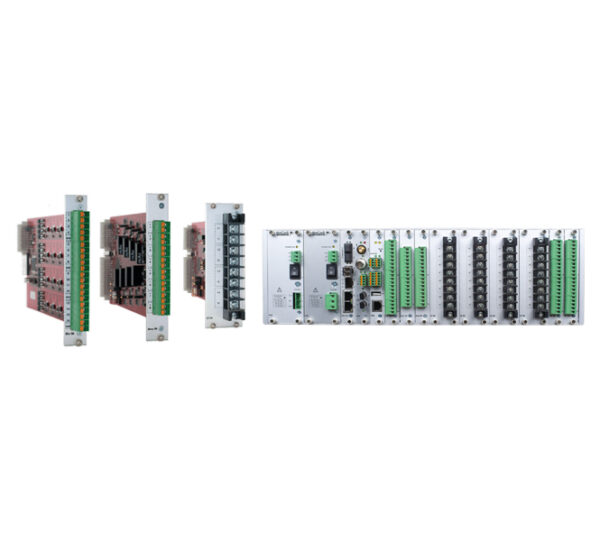

Available Module Slots

The SHERLOG CRX can be equipped with additional modules to enhance system reliability and communication capabilities:

1. Redundant Power Supply Module – Provides a second power supply for increased system availability and reliable continuous operation.
2. Interface Module – Supports redundant data communication and fibre-optic connectivity.
3. Synchronization Module – Provides precise time synchronization using commonly used synchronization standards.

Reliable Solution for Power System Monitoring

With its modular architecture, flexible input configuration, Plug & Play technology, and networking capabilities, the SHERLOG CRX provides a reliable solution for professional fault recording and power quality monitoring. It can be adapted to a wide range of applications, from individual electrical installations to large and distributed power systems.
