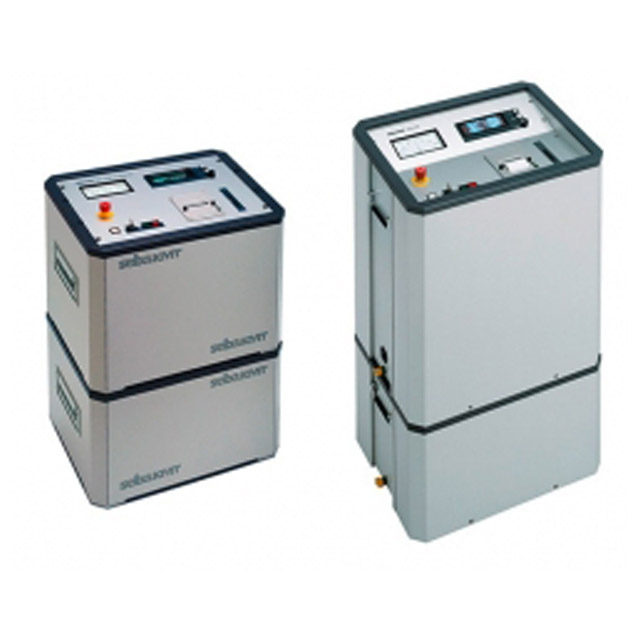

VLF CR Series VLF CR-28, VLF CR-40 and VLF CR-60

Description

Portable, high-performance and energy-efficient VLF test systems are used for testing cables with 0.1 Hz cosine-rectangular voltage according to IEC/IEEE/CENELEC standards. In accordance with guidelines, the dielectric strength of cables and joints must be checked after installation or repair.The VLF test systems from SebaKMT have high test-capacities and are still compact, because of the patented voltage wave-shape and the power-recycling during polarity reversal. Aside from cable and sheath testing, the test systems can also be used for the precise pinpointing of sheath faults (in combination with a step-voltage probe).

In total three portable systems are available, each with different voltage levels (28, 40 and 60 kVrms):

• VLF CR-28 up to cable series 15 kV
• VLF CR-40 up to cable series 23 kV
• VLF CR-60 up to cable series 35 kV

Overview of cosine rectangular cable test systems VLF CR Series

• VLF, DC and sheath fault testing in one device
• Portable thanks to two-part construction
• High test capacitance
• Integrated discharge system
• Reporting
