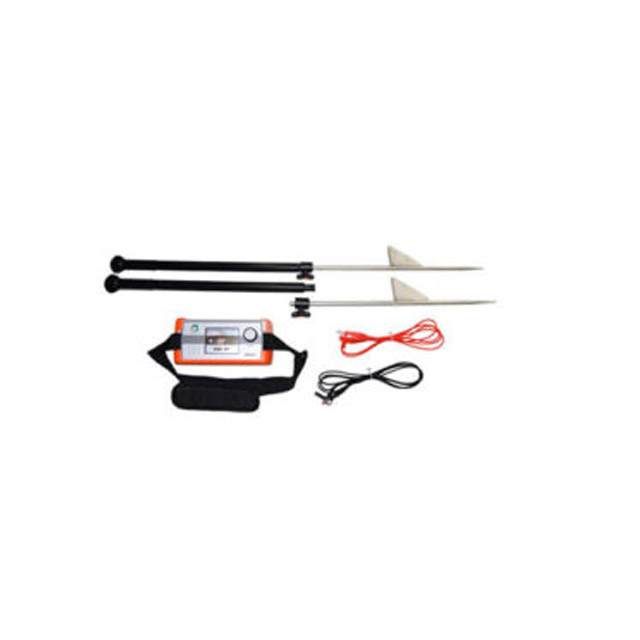

Sheath fault locator ESG NT

Description

Earth fault locator ESG NT is used to pinpointing cable sheath faults with great accuracy.Using a bright, sun readable TFT color display makes it very easy use.The displayis by a bargraph, similar to the analogue display or by a history display, which shows the deflections of the last 7 pulses. A fully automatic calibration keeps the display always at zero and the integrated noise suppression eliminates all influences by DC, Railway currents, industrial plants and high resistive soil environment. By two earth rods, the ground step voltage potential is measured and the direction towards the fault is indicated by the display.

SG NT earth fault locator measures the step voltage potential produced by a test generator in the underground. Other existing underground distortions such as potential equalisation current, DC offset, 16 ⅔ Hz or influences of ca-thodic protection systems are automatically detected and eliminated. The automatic zero calibration maintains display calibration continuously at zero.

Overview of  Sheath fault pinpointer ESG NT

• Very high sensitivity
• Automatic adaptation to voltage level
• Automatic filtration of interfering signals
• Automatic zero calibration, no
• adjustments necessary
• History mode
• High-contrast color display
• Automatic suppression of external potentials
• Automatic adaptation to the voltage level
• Automatic detection of the pulse rate
• Automatic zero adjustment
• Very high measuring sensitivity in the μV range
• Very easy operation
• Cable mounting at the dividable insulated earth rod
