Description
MIT430/2/ Insulation Tester
Megger MIT 430 mk2 Series Insulation & Continuity Testers

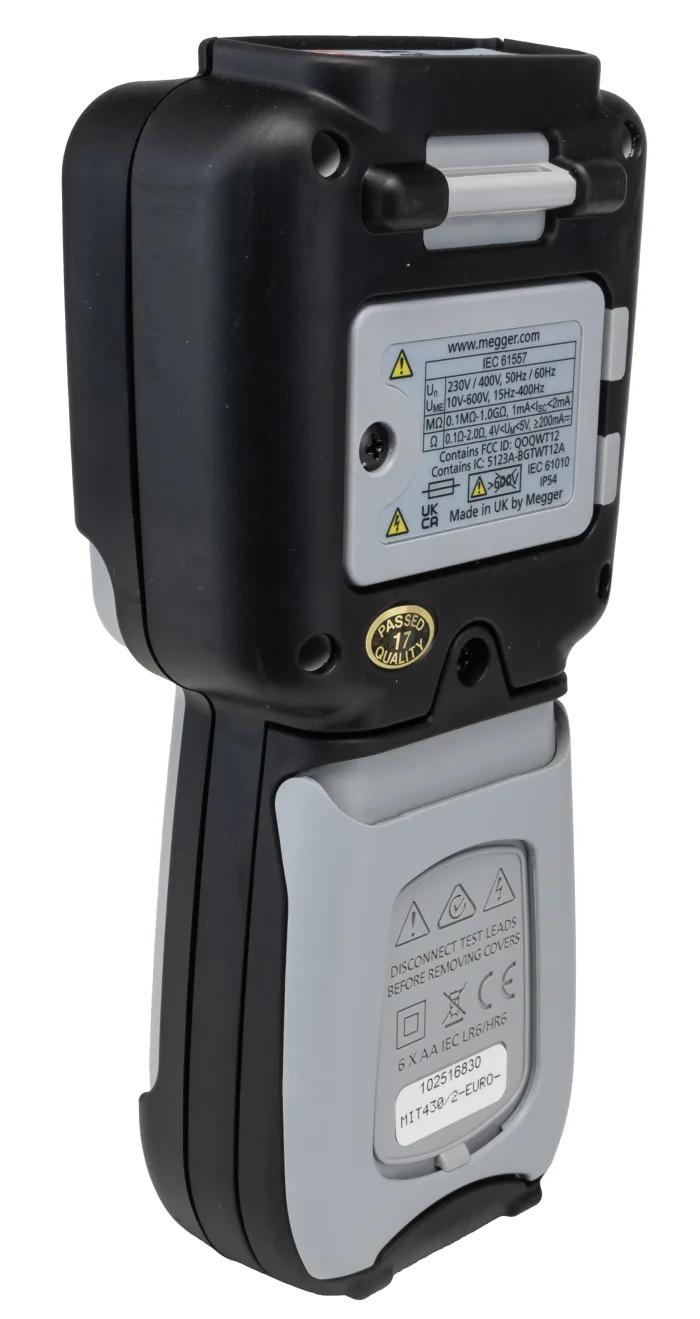

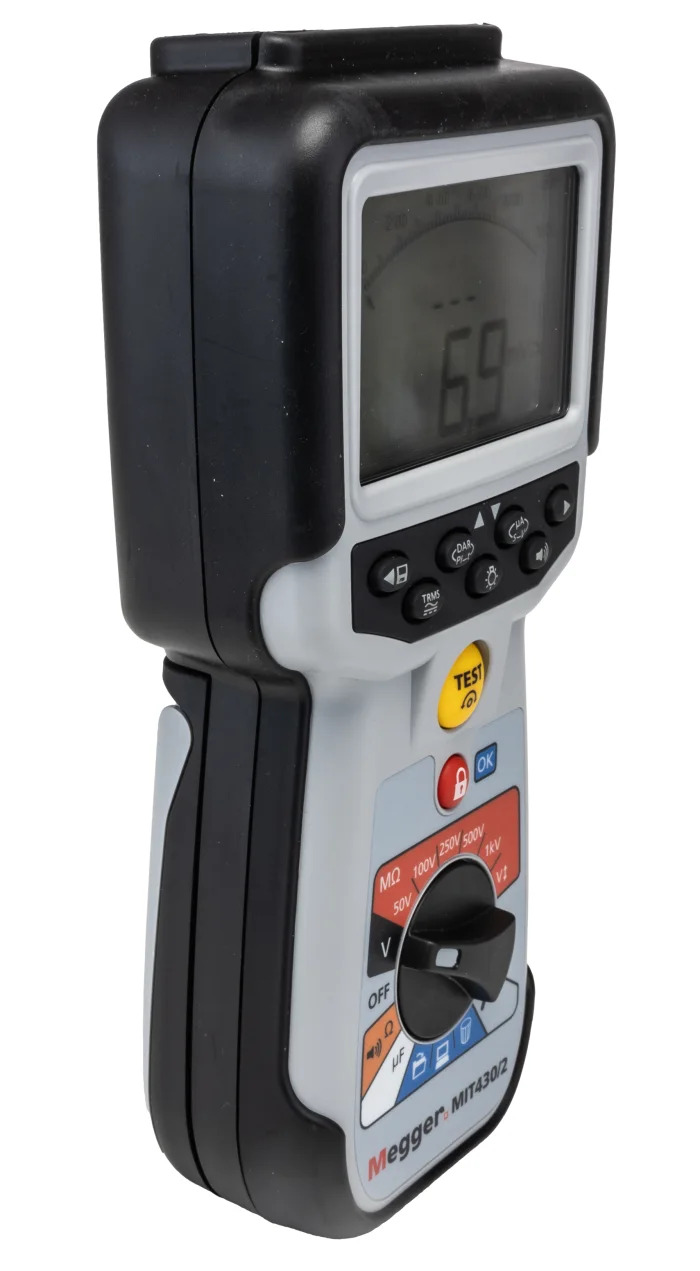

Meggers MIT430/2 Series of insulation and continuity testers are designed for testing electrical installation and specialist applications where accurate, reliable and safe testing is essential. Combining the latest range of measurement techniques with new instrument design to provide a state-of-the-art tester that is compact and comfortable to hold. Featuring a redesigned case, back-stand and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating, providing an almost indestructible case.
Megger MIT430/2 Insulation Tester | Advanced Testing

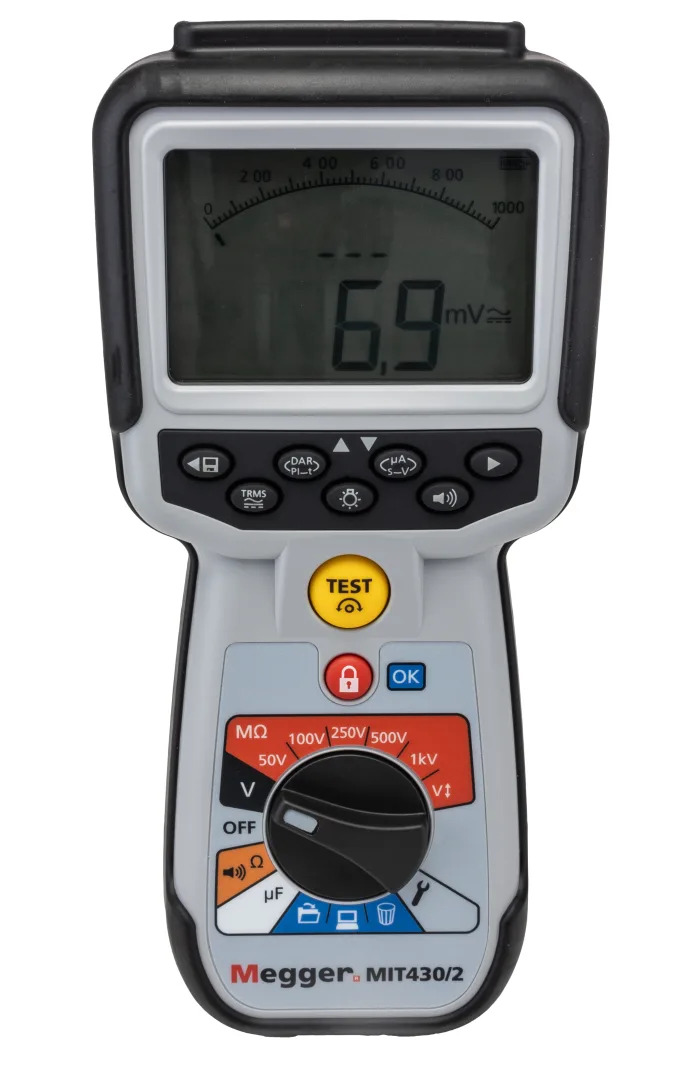

All primary results are displayed in the larger digital display and repeated on the analogue arc. Auxiliary test information such as frequency, leakage current, insulation or circuit voltage is displayed in the smaller secondary digital display. A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps. Where application- specific test voltages are required that do not appear in the standard ranges.
Continuity testing is now faster, a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “k ohms” ranges. Retained are the 200 mA and 20 mA test options.
Typical Applications include:- Manufacturing/production line goods, electrostatic measurement, component testing, battery powered traction and letting equipment, commercial avionics and military land, marine and air communications.
600 V TRMS AC and DC voltage measurement
Live circuit detection and protection
CAT IV 600 V & IP54
Weatherproof, rated to IP54
Test result storage and Bluetooth® downloading available
Rechargeable options for mains and car charging available
Battery Requirements: 6 AA Alkaline or Nickel Metal Hydride (NIMH)
Specifications
Brand :Â Megger
Model Number :Â MIT430 2
Product Type :Â Insulation Tester
Tester Type : Insulation Tester
Minimum Test Voltage : 10V
Maximum Test Voltage : 1000V
Test Current : 205mA
Battery Type : Alkaline
Power Source : Battery
Minimum Operating Temperature : -20°C
Insulation Testing Resistance : 200GΩ
Maximum Operating Temperature : 55°C
Safety Category Level : CAT IV
Safety Category Voltage : 600V
Height :Â 220mm
Length : 92mm
Standards/Approvals : IEC 61326-1
Width : 50mm
Weight : 775g
Calibrated :Â RSCAL
FAQ
Q1. What is the Megger MIT430/2 Insulation Tester?
The Megger MIT430/2 is a professional insulation tester designed for electrical insulation resistance testing and maintenance applications.
Q2. What is the Megger MIT430/2 used for?
It is used for testing the insulation condition of electrical equipment, cables, motors, generators and other electrical installations.
Q3. Who can use the MIT430/2 Insulation Tester?
It is suitable for electrical engineers, maintenance professionals, contractors, industries and testing technicians.
Q4. Can the MIT430/2 be used for electrical maintenance?
Yes. It can be used as part of electrical inspection, preventive maintenance and insulation testing procedures.
Q5. Can the MIT430/2 be used for cable testing?
Yes, it can be used for insulation resistance testing of suitable electrical cables according to the applicable testing procedure.
Q6. Can the MIT430/2 be used for motor and generator testing?
Yes. It can be used for insulation resistance testing of motors and generators, subject to the manufacturer’s recommended testing procedure.
Q7. Why is insulation resistance testing important?
Insulation resistance testing helps identify deterioration or unwanted leakage paths in electrical insulation, supporting preventive maintenance and electrical safety.
Q8. Is the Megger MIT430/2 suitable for industrial applications?
Yes. The MIT430/2 is suitable for professional electrical testing and maintenance applications across industrial and electrical environments.
Q9. Where can I buy the Megger MIT430/2 in India?
You can contact Shiv Shakti Infosys for product availability, quotation and technical assistance.
Q10. How can I get a quotation for the Megger MIT430/2?
Contact Shiv Shakti Infosys with your required quantity, application and delivery location to request a quotation.
