Description
Three PD Measurement Methods in One Device

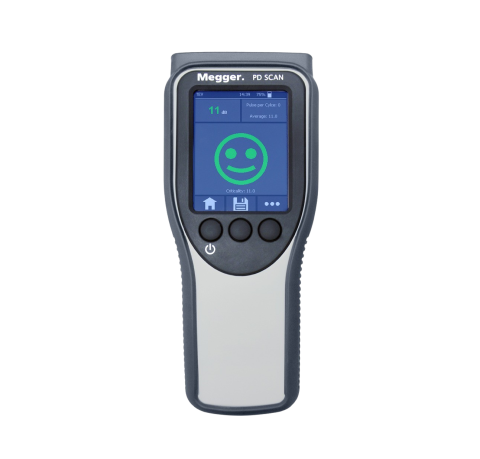

The Megger PD Scan is a versatile online Partial Discharge (PD) measurement solution designed for fast and convenient inspection of medium-voltage (MV) and high-voltage (HV) electrical systems.
With support for three PD measurement methods in one device, PD Scan provides flexibility for inspecting different types of electrical equipment and identifying potential insulation defects.
Plug-and-Play Operation
The PD Scan automatically recognizes the connected external sensor, making the measurement process quick and straightforward. Its portable design allows electrical maintenance and testing teams to carry out inspections efficiently without complicated setup procedures.
Why Perform Online PD Measurements with Megger PD Scan?
Early detection of Partial Discharge activity can help electrical maintenance teams identify developing insulation problems before they result in equipment failure.
1. Detect Emerging Insulation Defects
Partial Discharge activity can be an important indicator of developing defects in electrical insulation and accessories. Detecting PD activity at an early stage can help maintenance teams investigate potential problems and plan appropriate corrective action.
2. Inspect More Than Just the Cable
Conventional offline PD measurements performed on cables primarily assess the cable itself. Potential defects in connected equipment, such as switchgear, may remain undetected.
Online PD measurements can help inspect equipment while it remains connected and operating under normal conditions.
3. Reduce the Need for Complete Shutdowns
Offline PD testing of switchgear generally requires the equipment or station to be taken out of service. Online PD measurements allow inspection while the equipment is operating, helping reduce the need for planned outages during condition assessment.
4. Practical Alternative to Permanent PD Monitoring
Permanent online PD monitoring systems can involve significant installation and investment costs. A portable solution such as the Megger PD Scan provides a flexible way to perform periodic online inspections across different equipment and locations.
5. Test Equipment Under Normal Operating Conditions
One of the key benefits of online PD testing is the ability to inspect electrical equipment under normal operating conditions. With the appropriate measurement setup, users can investigate PD activity without requiring a complete system shutdown.
Avoid Partial Discharge Problems with Megger PD Scan
Partial Discharge can be an early indication of insulation deterioration in medium- and high-voltage electrical systems.
If developing defects remain undetected, they can eventually lead to insulation failure, unexpected equipment outages, costly repairs, and disruption to electrical networks.
The Megger PD Scan provides a portable solution for detecting and investigating Partial Discharge activity in MV and HV equipment.
Its lightweight and robust design makes it suitable for field inspections, maintenance activities, and condition assessment programs.
Key Features of Megger PD Scan
- Online Partial Discharge measurement
- Designed for MV and HV electrical systems
- Three PD measurement methods in one device
- Automatic recognition of connected external sensors
- Plug-and-play operation
- Lightweight and portable design
- Robust construction for field applications
- Suitable for rapid equipment inspection
- Enables testing under normal operating conditions
- Helps identify potential insulation-related problems at an early stage
What Is Partial Discharge (PD)?
Partial Discharge (PD) is a localized electrical discharge that occurs within or around insulation when the insulation system experiences electrical stress.
PD activity can indicate deterioration, defects, voids, contamination, or other problems within an insulation system. Monitoring and investigating PD activity can therefore support condition-based maintenance and help identify potential problems before major insulation failure occurs.
Where Can Megger PD Scan Be Used?
The Megger PD Scan can be used for online inspection and condition assessment of various medium- and high-voltage electrical equipment and systems.
Typical applications include:
- Medium-voltage switchgear
- High-voltage electrical systems
- Power cables and cable accessories
- Electrical insulation systems
- Substation equipment
- MV/HV plant equipment
- Electrical network condition assessment
- Preventive and condition-based maintenance programs
Benefits of Online Partial Discharge Testing
Online PD measurement can provide several practical benefits for electrical maintenance teams:
- Helps identify developing insulation problems
- Supports preventive maintenance
- Reduces dependence on shutdown-based inspections
- Allows equipment to be assessed during normal operation
- Helps maintenance teams prioritize further investigation
- Supports condition-based maintenance strategies
- Can help reduce the risk of unexpected equipment failures
Megger PD Scan – Portable PD Testing for Condition Assessment
The Megger PD Scan combines portability, flexibility, and online measurement capabilities in a compact solution for electrical maintenance professionals.
Instead of waiting for an insulation problem to develop into an equipment failure, maintenance teams can use PD measurements as part of a proactive condition assessment program.
With its automatic sensor recognition and multiple PD measurement methods, PD Scan is designed to make online Partial Discharge inspections more convenient and efficient.
Frequently Asked Questions (FAQ)
1. What is Megger PD Scan?
Megger PD Scan is a portable online Partial Discharge scanner designed to detect and investigate PD activity in medium-voltage and high-voltage electrical systems.
2. What is Partial Discharge measurement?
Partial Discharge measurement is a diagnostic technique used to detect localized electrical discharge activity associated with defects or deterioration in insulation systems.
3. Why is online PD measurement important?
Online PD measurement can help identify potential insulation problems while equipment is operating under normal conditions. This can support early fault detection and condition-based maintenance.
4. Does PD Scan require equipment shutdown?
PD Scan is designed for online PD measurements, allowing suitable equipment to be inspected under normal operating conditions without requiring a complete shutdown for the measurement itself. The exact measurement procedure depends on the equipment and sensor arrangement.
5. How many PD measurement methods does PD Scan support?
The Megger PD Scan provides three PD measurement methods in one device, offering flexibility for different inspection requirements.
6. Does PD Scan automatically recognize sensors?
Yes. The plug-and-play system automatically recognizes the connected external sensor, helping simplify the measurement setup.
7. Where can PD Scan be used?
PD Scan can be used for condition assessment of suitable MV and HV electrical equipment, including switchgear, cables, cable accessories, and other insulation systems.
8. What are the benefits of detecting PD activity early?
Early detection can help maintenance teams investigate developing insulation problems, plan corrective action, and reduce the risk of unexpected equipment failure.
9. Is Megger PD Scan portable?
Yes. PD Scan is designed as a lightweight, robust, and portable PD scanning solution suitable for field inspections.
10. Who can use Megger PD Scan?
PD Scan can be useful for electrical maintenance teams, testing engineers, utilities, industrial plants, substations, electrical contractors, and organizations involved in MV/HV equipment condition assessment.
