IMT100 Industrial Multi Tester

Description

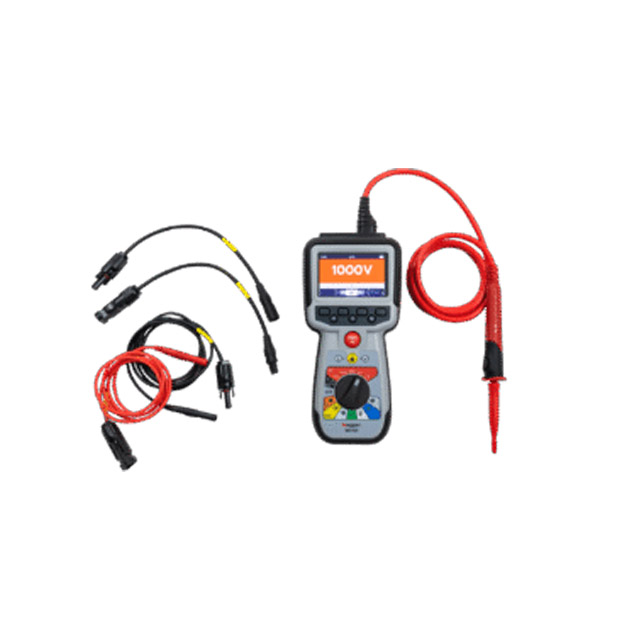

The IMT100 Industrial Multi Tester

state-of-the-art handheld instrument that brings together more than 13 essential electrical testing functions into one rugged and reliable device. Manufactured by Megger and distributed this tester is designed for professionals who demand accuracy, durability, and efficiency across a wide range of industries.

From photovoltaic systems and electric vehicles to industrial machinery and electrical installations, the IMT100 provides dependable testing solutions that meet global standards and ensure safety in the most demanding environments.

Key Features of the IMT100

• Insulation Resistance Testing: Measure up to 200 GΩ with advanced modes including PI (Polarization Index), DAR (Dielectric Absorption Ratio), and timed insulation tests.

• Low Resistance Bonding: Two, three, and four-wire Kelvin testing for highly accurate bonding verification.

• Voltage and Frequency Measurement: AC and DC voltage testing up to 1000 V with TRMS accuracy and three-phase rotation analysis.

• Continuity Testing: Wide range from 0.01 Ω to 1 MΩ, with 200 mA current capability and automatic polarity reversal.

• Capacitance and Inductance: Reliable component testing with selectable test frequencies for precise measurements.

• Temperature Measurement: Includes a thermocouple probe to test and compensate for insulation resistance under different environmental conditions.

• Data Storage and Transfer: Stores up to 256 test results, downloadable via USB for easy reporting.

• Rugged and Safe: IP54 environmental protection, CAT III 600 V safety rating, and built-in live circuit detection ensure maximum protection for users and equipment.

• The IMT100 from Adiradh is trusted across multiple industries, making it one of the most versatile testers in the market today:

  • Solar Energy (Photovoltaic) – Ensure compliance with IEC62446 standards through insulation, bonding, DAR, PI, voltage, and diode testing.

  • Electric Vehicles – Ideal for EV manufacturing plants, service workshops, and R&D facilities with compliance to UN EEC R100 standards.

  • Power Generation – Maintain electrical infrastructure with reliable resistance, insulation, and continuity testing.

  • Rotating Machinery – Perfect for motors, generators, and industrial machinery with motor rotation, continuity, and insulation analysis.

  • Electrical Installations – Suitable for domestic, commercial, and industrial installations, ensuring reliable and safe operations.

  • Technical Highlights

    • Insulation Resistance: 100 Ω to 200 GΩ

    • Voltage: AC/DC 0–1000 V, TRMS (15 Hz – 400 Hz)

    • Continuity: 0.01 Ω to 1 MΩ, 200 mA test current

    • Low Resistance (Kelvin): 1 mΩ to 10 Ω

    • Capacitance: 0.1 nF to 1 mF

    • Inductance: 2 mH to 1 H

    • Temperature: -20 °C to 1000 °C

    • Data Storage: 256 results, USB download

    • Protection: CAT III 600 V, IP54
