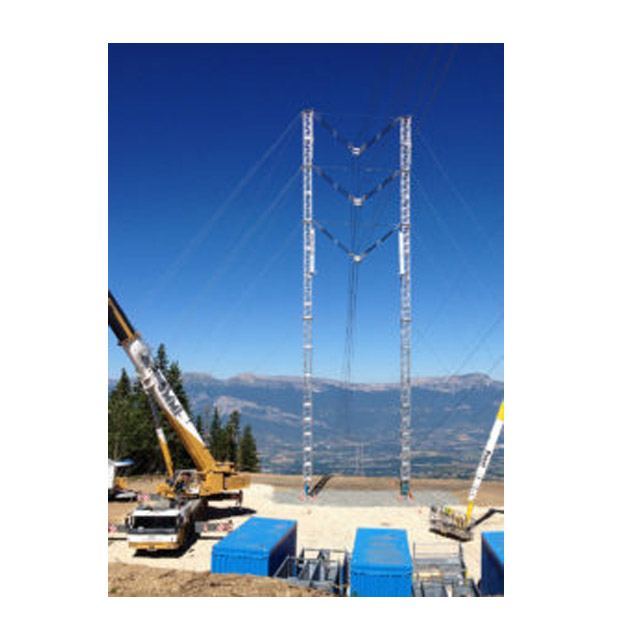

Emergency Restoration System-ERS Towers

Description

ERS towers are Modular, reusable transmission tower systems are so versatile that they can be used  in line crew of national grid, utility companies and associated with others power transmission and distribution companies for various applications such as: Restoring power following a disaster (flood, hurricane, war, etc),Conducting scheduled maintenance work on existing towers without major interruptions, temporary line extensions in a fast & efficient way (no civil engineering work required),Temporarily linking villages or remote locations (mining sites) to the main grid.Generally, when electrical transmission is interrupted because one or several transmission towers are damaged, there is a high economical cost for the Transmission and utility companies.Adiradh Energy offers Lindsey make ERS towers  four models  1070-ERS Series ,800-ERS Series,600H-ERS Series,600L-ERS Series for  in India

ERS Towers Reliability and safety

• Design and proof tested to IEEE Standard 1070-2006, the only world-wide accepted standard for ERS. Lindsey 1070-series ERS are also fully compliant with the dimensional requirements of this standard.
• Testing performed in accordance with IEC-60652 “Loading Tests on Overhead Line Structures.”
• Lindsey is ISO-9001:2008 Certified for Design and Manufacture of ERS

This represents an opportunity for a quick and efficient solution to temporarily replace damaged towers, until the utility company can remove the damaged tower, build a new foundation, transport the new tower to the site and install it. This process can take as little as 1 or 2 weeks (tower in stock, 24h shifts, efficient teams) or as long as 30 to 50 days .By using ERS, the transmission towers can be replaced in just a few hours by creating a by-pass and power transmission can be resumed much faster than with the traditional methods. ERS Towers  can be erected in a few hours and is being used  from 132-kV,220-KV,400-KV to 765-KV  transmission lines across India.

What Standard Should Follow for ERS Structure?

ERS tower structure principally uses in emergency situation. So, product quality considering safety must be as the highest prioritized. Marinating international standard- there is “IEEE Guide for the Design and Testing of Transmission Modular Restoration Structure Components”, including earlier or later versions. Strict conformance of IEEE 1070-2006 includes testing requirements, material requirements, fabrication requirements, and all other geometric and dimensional requirements listed in the IEEE 1070 standard, without exception.  The manufacturer shall submit with his proposal, a certified copy of the Design Test Report as required in Section 4 of IEEE Standard 1070-2006.
