Megger DCM1500S Solar Clamp Meter – Advanced Solar PV & Electrical Current Testing Solution

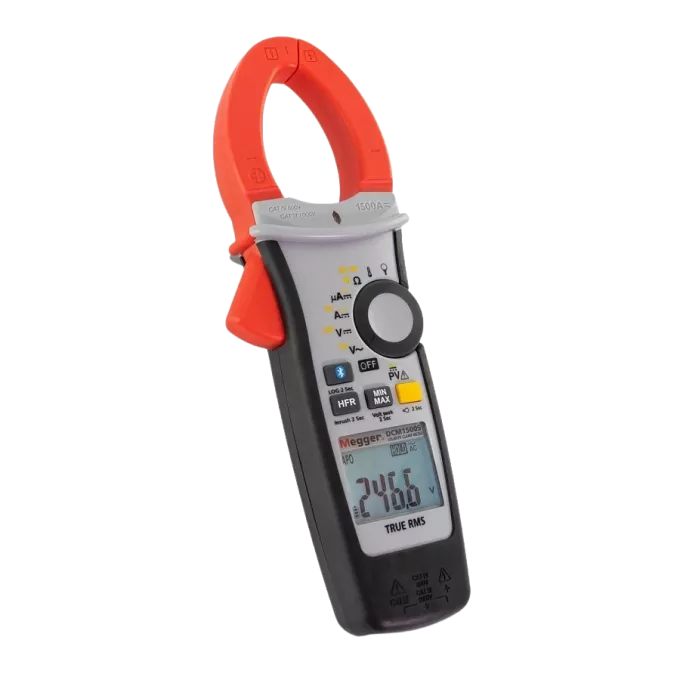

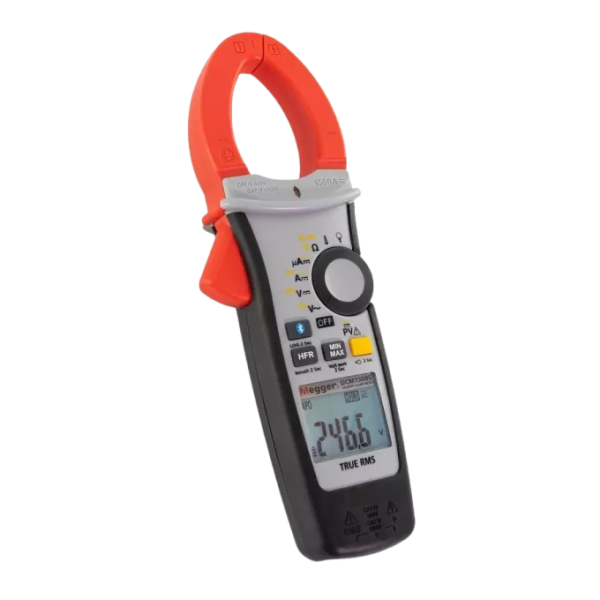

DCM1500S/ Solar clamp meter
About the product
- 2000 V DC
- TRMS 1500 V AC
- 1500 A AC/DC
- Smart Hold
- Auto ranging
- MIN/MAX Hold
- Inrush current
- Megger Link app compatible
- CAT IV 600 V and CAT III 1000 V
- Data logger

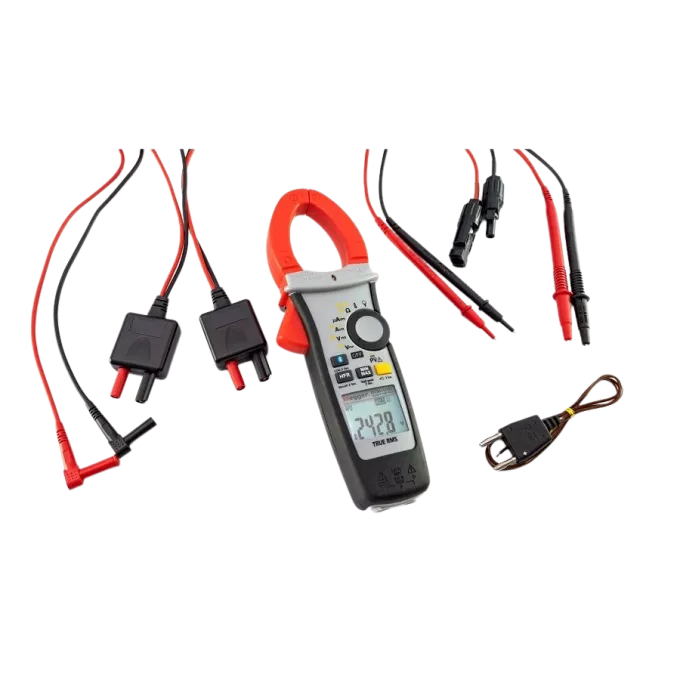

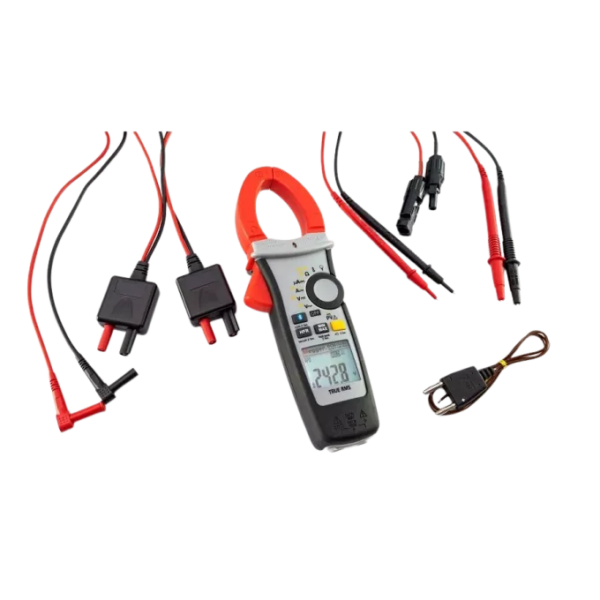

- PV test leads
The Megger DCM1500S Solar Clamp Meter – Advanced Solar PV & Electrical Current Testing Solution has been designed to be used on electrical systems and equipment, including solar/photovoltaic installations where, there is a need to measure current, volts, resistance, and frequency. It is therefore intended for use while installing, maintaining, fault-finding, or monitoring those systems. In addition to voltage and current measurements, the DCM1500S has the ability to measure resistance, diode, capacitance, temperature, and frequency.
It can measuring up to 2000 V DC and 1500 V AC (using the PVHV Leads), as well as 1500 A AC or DC. It has a large, clear backlit display and an automatic torch in the jaw to make it easier to ses in poorly lit areas. Also, using the free Megger Link App, the measurement value can be remotely monitored on a smart device using its built-in Bluetooth. This will give a live trend graph and offer the ability to sample and log the values for later analysis.
The instrument’s smart “data-hold” function expands the standard hold function by giving the operator an audible warning if the ‘held’ reading increases by 50 counts or above. “Min/Max” hold gives you the ability to measure the maximum and minimum values over a period of time, with each value selectable in turn. Other features of the DCM1500S include a high frequency rejection filter, inrush current measurement, internal data logging, a non-contact volt seek mode, and manual DC Amp zeroing.
FAQ
Q1. What is the Megger DCM1500S?
The Megger DCM1500S is a solar clamp meter designed for electrical and solar PV testing and measurement applications.
Q2. What is the Megger DCM1500S used for?
It is used for current measurement and electrical testing in solar PV systems and other suitable electrical applications.
Q3. Who can use the DCM1500S Solar Clamp Meter?
It is suitable for solar technicians, electricians, electrical engineers, contractors and maintenance professionals.
Q4. Can the DCM1500S be used for solar PV systems?
Yes. The DCM1500S is designed for solar PV testing and maintenance applications, subject to the instrument’s specified measurement capabilities.
Q5. Why use a clamp meter for solar testing?
A clamp meter allows electrical current measurements to be performed conveniently without requiring the conductor to be disconnected, when used within the instrument’s specifications and safety procedures.
Q6. Is the Megger DCM1500S suitable for professional use?
Yes. It is designed for professional electrical and solar testing applications.
Q7. Where can the Megger DCM1500S be used?
It can be used in solar installations, electrical maintenance, PV system inspection and suitable industrial applications.
Q8. Is the DCM1500S useful for solar installation and maintenance?
Yes. It can be useful for technicians performing electrical measurements during solar PV installation, inspection and maintenance.
Q9. Where can I buy the Megger DCM1500S in India?
You can contact Shiv Shakti Infosys for product availability, quotation and technical assistance.
Q10. How can I get a quotation for the DCM1500S?
Contact Shiv Shakti Infosys with your required quantity, application and delivery location to request a quotation.
