10kV Diagnostic insulation resistance tester-MIT1025

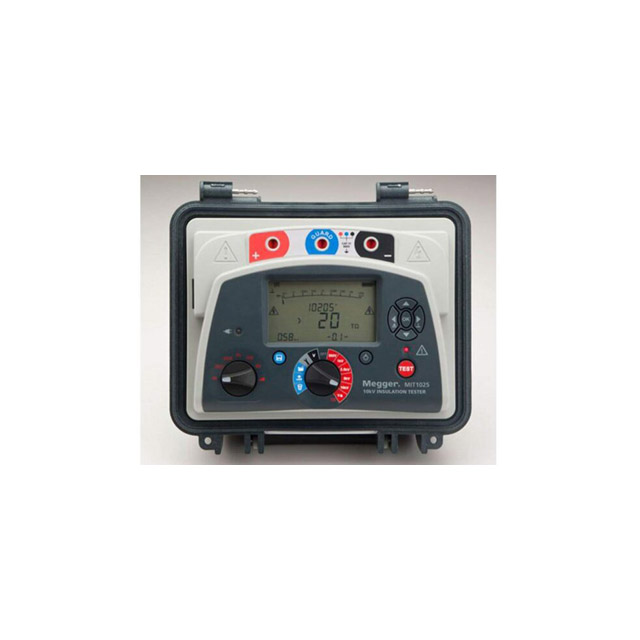

Is compact and rugged for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store. 10 kV insulation resistance tester MIT1025 measuring insulation resistance to 20 TΩ, the MIT1025 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing. Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition in 10KV IR Tester MIT 1025 the elapsed time of the test is displayed constantly removing the need for separate timer.
10kV Diagnostic insulation resistance tester-MIT1025 has a full suite of test modes as well as onboard memory and the ability to stream data/download data to a PC/laptop. Instrument productivity is a focus of the new MIT range which offers rapid charge batteries and operation from an AC source if the batteries are dead. Rapid charge batteries enable >60 minutes testing after a 30 minute charge. The MIT range share dual case design which includes a tough outer case to protect the tester from knocks/drops and an inner fire retardant case. The IP rating is IP 65 case closed eliminating moisture and dust ingress. The unit is designed for testing the insulation of high-voltage electric equipment. Its wide voltage range also allows applications for low-voltage equipment.MIT1025 has a large, clearly visible screen which relays test results, and this can be used to relay information about voltage, leakage current, capacitance, battery status and time constant, as well as the overall elapsed time of the testing procedure.
PI PREDICTOR FUNCTION (PIp)
The Polarisation Index test can be time consuming, with a 10 minute test (30 mins on 3 phase) and with multiple items to test, any time saved is a bonus. PIp does just that. The PI predictor function uses the first part of the IR curve to predict the rest at 5 minutes into the test. The PIp can start as early as 3 minutes into the test and will stop when it is confident in the predication
Features of 10kV Diagnostic insulation resistance tester-MIT1025
- 20TΩ maximum insulation resistance
- Timed IR plus PI and DAR diagnostic testing
- Can operate even when batteries are dead when hooked up to on line power/mains
- Rapid charge battery gives up to 6 hours continuous testing
- Dedicated voltmeter functionality from 30V to 660V
- CAT IV 600V safety rated
- Large built-in LCD screen with automatic backlight for use in darkened conditions
- Noise filter automatically filters out electrical noise up to 3mA
- Dielectric discharge, step voltage and ramp testing functions
- In built memory stamps data with time/date information and allows users to recall tests
- Download data directly to PC via USB connection
- Compatible with PowerDB Lite software package

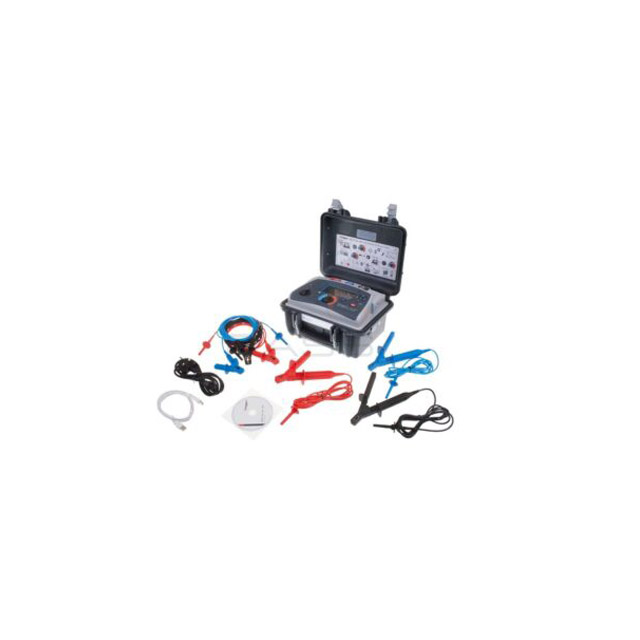

Scope of supply for 10KV Insulation tester MIT1025,Part No: 1001-943
- Main Unit 10KV Insulation Resistance tester -1 No
- 3m test lead set big crocodile lead set -1 No
- 3m test lead set small crocodile lead set -1 No
- USB Cable -1 No
- Cables bag-1 No
- Power Cable-1 No
- User Manual-1 No
- Warranty certificate-1 No
- Test and Calibration certificate -1No
- CD-1 No
Industrial sites
Cable testing
Motor testing
Automotive
ESD
Panel building
Avionics
Maintenance sites
Choose an insulation tester?
You should also base your voltage requirements on the rated voltage of the equipment you are working with, specifically whether or not you will be performing tests at or above rated, i.e. stress tests.Something to keep in mind is that pervasive insulation damage, such as moisture ingress, is revealed at any voltage; whereas mechanical damage usually requires a higher voltage for detection – capable of arcing an air gap.With 1 kV, 2.5 kV, and 5 kV models to choose from, this may be the most critical decision you have to make.
Measurement Range
When working in the realm of predictive maintenance, it’s critical to know exactly how your measurements change over time, specifically in the upper values of resistance. Insulation testers allow you to test into the tera ohm range (TΩ) – giving you the capability to differentiate between elevated resistance measurements over time. It may be helpful to determine the exact insulation resistance values of your equipment when it’s new, and then choose a tester that can truly measure those values.
Power Source
Batteries are likely the most convenient,
Voltage Detection
Insulation testers will detect unwanted voltage on the item under test
Display
Combine both Analogue and LCD display capabilities in a single unit suggestable
Ω/kΩ/GΩ/TΩ Ranges
Okay, these are commonly referred to as “continuity” and “resistance” ranges, which greatly enhance the depth of your testing capabilities. Ohm ranges can help you verify the integrity of circuits and connections, while kilohm ranges are helpful for identifying areas of insulation deterioration.
To eliminate certain components of leakage from measurements, should take the guard terminal into consideration.
Price
From a few rupees thousands to several Lakhs , we have an insulation tester for every budget. Don’t let the price tag fool you either. Regardless of your budget, you’ll find a model that not only fits your testing requirements, but also offers a range of additional features too.
“Extra” Features
Newer models offer pre-programmed standardized tests, such as Polarization Index, Step Voltage, and Dielectric Discharge, along with calculation and storage of results, downloading capabilities, timed tests, leakage current measurements, and a “burn mode”.We recommend that if it fits your budget – go for it!
Various types of diagnostic insulation tests:
Spot Reading Test (IR )(IR(t)): The simplest of all insulation tests and the one most associated with lower voltage insulation testers; the test voltage is applied for a short, specific period of time and a reading is then taken
Time vs. Resistance Test (DAR): The concept of the time resistance test is to take successive readings at specified times during a single test.
Polarization Index Test (PI): The simplest implementation of the time resistance test for solid insulation, the PI Test requires only two readings followed by a simple division; the one-minute reading is divided into the ten-minute reading to provide a ratio. With “good” insulation, leakage current is relatively small and resistance rises continually as current decreases from the effects of charging and dielectric absorption
Dielectric Discharge Test (DD): While the other methods mentioned measure the currents flowing during the charging process, the DD test measures the current that flows during discharge of the test sample.
Step Voltage Test (SV): Since good insulation is resistive, an increase in test voltage will lead to an increase in current with a result that the resistance remains constant. Any deviation from this could signify defective insulation. At lower test voltages, say 500 V or 1000 V, it is quite possible that these defects might be unobserved, but as the voltage rises we reach a point where ionization can take place within cracks or cavities, resulting in an increase in current, and therefore a reduction in the insulation resistance.
Ramped Voltage Test: The ramped voltage test is endorsed in IEEE95-2002 as part of the recommended practice for insulation testing of AC electric machinery (2300 V and above) with high direct voltage. When using this test method, the test voltage is gradually increased (ramped) at a set rate to a final level, which results in an increase in the current. Any variations in current compared to the increase in applied test voltage can provide useful diagnostic information about the condition of the insulation.
