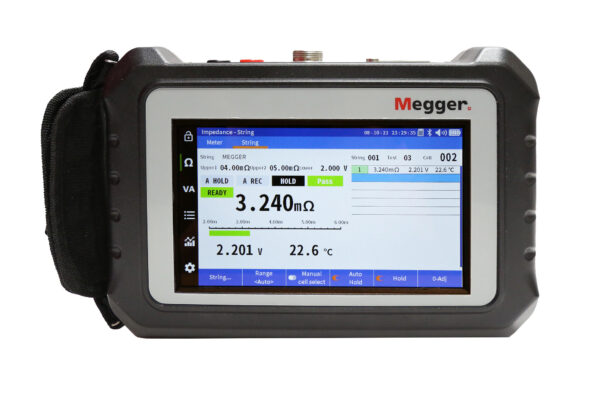

Megger BITE5 Battery Tester Analyzer For Industrial
Battery tester BITE5 also supports discharge testing. It will measure the voltage and current throughout the discharge cycle. The BITE5 can also measure the impedance and temperature throughout the discharge cycle. It can record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Measure the average impedance at the end of the commissioning test and use this as a limit for future impedance tests. Trend the recorded data on the BITE5 touch screen and view the trended data of each test, or trend the discharge of each cell. Transfer the recorded data via USB or via an SD card to the Power DB software, then create custom reports.Battery impedance tester BITE5 can be used on more than just batteries. Measure and record the output of solar panels on a branch of panels. Measure and record combiner DC voltages. Measure the input and output of inverters and more.
Features of Battery tester BITE5
Tests lead acid (VLA and VRLA), NiCD, and lithium-ion
 Measures cell impedance
 Cell voltage
 Cell temperature
 Cell voltage ripple
 AC current (ripple)
 DC current (float)
 Supports discharge testing
 Measures cell voltages throughout discharge
 Measure cell temperature throughout discharge
 Measure cell impedance throughout discharge
 Measure DC current throughout discharge
 Measure string voltages up to 1000 V DC
 Measure solar combiner boxes up to 1000 V DC
 Measure DC side of inverters up to 1000 V DC
 Measure AC side of inverter up to 600 V AC
 Wirelessly transfer data to PowerDB
 Supports battery discharge testing
 Measures impedance on cells up to 200 V
 Supports lead acid, NiCD and lithium-ion
 Measures DC voltages up to 1000 V
 Measures AC voltages up to 600 V
 Touch screen set-up and trending
 USB and micro SD card
 Measures AC and DC current
APPLICATIONS OF BITE5
 Battery impedance testing
 Battery discharge testing
 Solar combiner box measurements up to 1000 V DC
 Lithium-ion battery testing up to 200 V DC
