Description

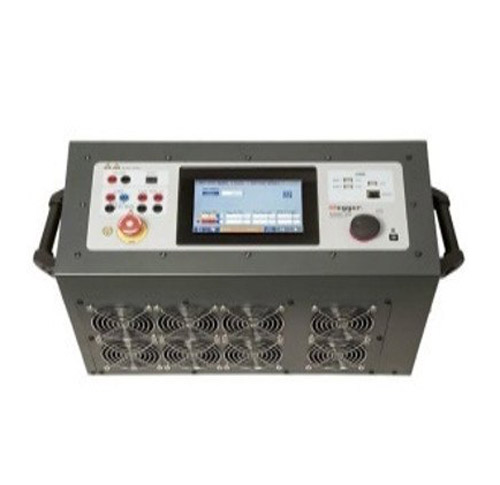

Megger Battery discharge unit/ TORKEL900 series battery discharge test systems
The TORKEL900 series of battery discharge test systems are Megger’s fourth generation of battery discharge analysers. Discharge testing is the only test method that provides a comprehensive insight into battery capacity, and is therefore an essential part of vigorous battery maintenance programmes.
Tests with the TORKEL900 series can be conducted at constant current, constant power, constant resistance, or in accordance with a pre-selected load profile. What’s more, if you connect the BVM battery voltage monitor to a TORKEL900 unit, the TORKEL becomes a complete standalone discharge test system.
With the TORKEL900 series, you won’t need to disconnect the battery from the equipment. The TORKEL900 units use a DC clamp-on ammeter to measure the total battery current while regulating it at a constant level. If the voltage drops to a level slightly above the final voltage, the TORKEL issues an alarm and if there is a risk of deep discharging the battery, the TORKEL stops the test. All results are stored in the TORKEL and can easily be transferred to a PC via a USB drive.
Additionally, testing times are much shorter with the TORKEL900 series, thanks to their high discharge capacity. Discharging can take place at up to 220 A, and if higher current is needed, two or more TORKEL units or extra load units (TXL) can be linked together.
The TORKEL900 series has three models available: 910, 930, and 950, depending on the maximum current (up to 220 A), voltage (up to 500 V), and functionality required.
Battery Load Unit TORKEL 900 series is connected to the battery, the discharge current and the alarm levels (voltage, capacity, time) are set. After starting the discharge TORKEL keeps the current constant at the preset level. When the voltage drops to a level slightly above the final voltage, TORKEL issues an alarm. If the voltage drops so low that there is a risk for deep discharging the battery, TORKEL shuts down the test. All values are stored in Battery discharge unit TORKEL and can easily be transferred via an USB-stick to a PC for evaluation. Adiradh energy offering Megger make Battery Load Unit Models Torkel 910,Torkel 930 and Torkel 950 in Hyderabad,Chennai, Bangalore , Pune , Delhi , Mumbai ,Noida,Kolkata,Surat,Ahmedabad,jaipur Nagpur and other areas in India
Battery load unit applications
- Discharge testing for full insight into battery capacity
- Enhanced safety features including spark free connection and emergency safety fuse
- Ability to test the battery without disconnecting it from the system
- High discharge capacity shortens the test time
- A complete stand-alone discharge test system
Battery Load Units Torkel 900 series
TORKEL comes in three models, 910, 930 and 950
Battery load unit ordering information
Torkel 910 with accessories Part No: CS-19190
Torkel 910 with accessories case large Part No: CS-19191
Torkel 930 with accessories Part No: CS-19390
Torkel 930 with accessories case large Part No: CS-19391
Torkel 950 with accessories Part No: CS-19590
Torkel 950 with accessories case large Part No: CS-19591
