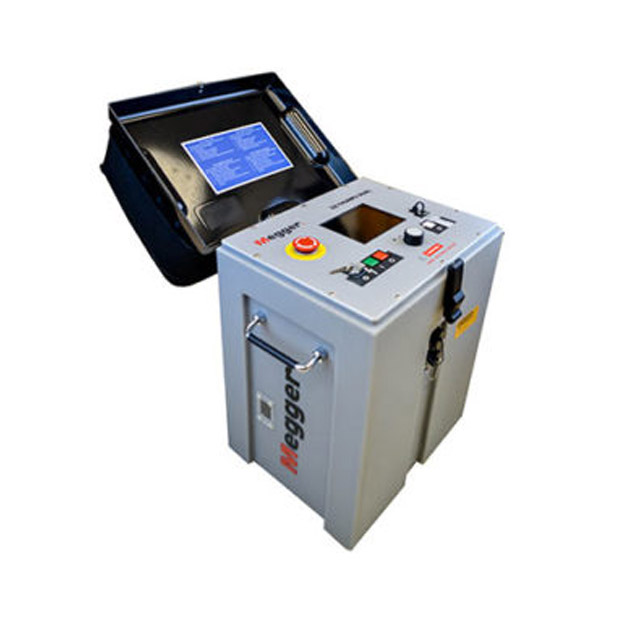

LV Cable Fault locators EZ-THUMP 3 kV and EZ-THUMP 4 kV

Description

Dual stage 500 J surge energy at 1.5 kV and 3.0 kV EZ-Thump 3kV only, Single stage 500 J surge energy at 4.0 kV EZ-Thump 4kV only. Weighing as little as 32 kg the EZ-Thump 3 kV is the first of its kind in the market and with updated EZ-Thump 4 kV this series are the most portable fault location systems specifically for shielded and unshielded low voltage power cable. They use the “Easy Go” test system, which is easy to operate, interprets the results and requires minimal training to find faults. On-board is a TDR with a 7.6 km range and arc reflection at 3 or 4 kV respectively for pre-locating. For pinpointing, EZ-Thump offers a surge energy of 500 J, at 1.5 and 3 kV or 4 kV respectively, d.c. testing for breakdown detection and insulation resistance measurement.
