Description

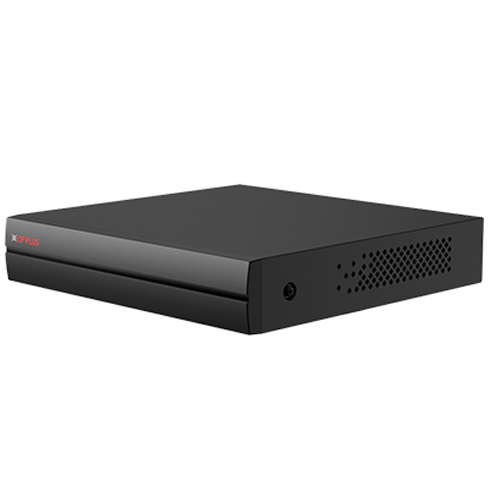

8Ch. 1080N Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 10-channel IP camera input and each channel can be up to 6 MP.
- The incoming bandwidth reaches 40 Mbps
- 8 Channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- Instastream, H.265, H.264+ H.264 dual-stream video compression
- Mobile Software: iCMOB, gCMOB
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Analog Camera Input | BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect |
| IP Camera Input | Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
| Two-way Talk | Coaxial two-way talk: 8 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| User Interface | Web, Local GUI |
| Video Output | 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Abnormality Alarm | Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
| SMD By Camera | 10 Channels |
| Camera Input | 1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps |
| stream Capability | Dual stream |
| Video Frame Rate | Main stream: The 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps), 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
| Video Display Split | When IP extension mode not enabled: 1/4/8 When IP extension mode enabled: 1/4/8/9/16 |
| Record Mode | General, Alarm, Motion detection |
| Bit Rate | 32 kbps–4096 kbps |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK |
| Audio Input | 1-channel RCA, 8 Channel BNC (Coaxial Audio) |
| SMD Plus by DVR | 8 Channels: Secondary filtering for human and vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change |
| Disk Interface | 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Recording Playback | 1/4/ |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Backup Mode | USB device and network |
| Interface Ports | 2 USB (2 rear USB 2.0 ports) |
| Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <7 W (without HDD) |
| Operating Temperature | –10°C to +45°C (+14°F to +113°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimension | 197.0 mm × 204.3 mm × 41.5 mm |
| Weight | 570g |
