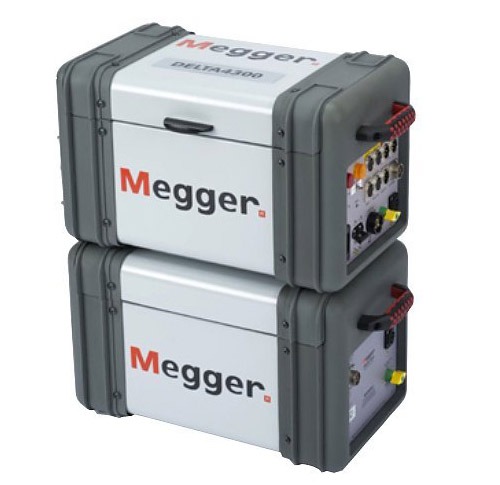

Capacitance and Tan delta kit -12KV Insulation Diagnostic system

Capacitance and Tan delta test kit Delta4110 in India is automatic designed for condition assessment of electrical insulation in high voltage apparatus such as transformers, bushings, circuit breakers, cables, lightning arresters, and rotating machinery. Tan delta Measurements include voltage, output current up to 300 mA, power (loss), tan delta, inductance, power factor and capacitance. Tan delta 4110 accurate measurement results under high noise conditions as tested up to 765 kV substations. Temperature correction allows the user to estimate the actual temperature dependence of the test object by measuring capacitance and tan delta measurement over a frequency range from 1 HZ to 500 HZ and automatic voltage dependence detection.

Capacitance and tan Delta test system Megger DELTA4110 is designed to provide a comprehensive AC insulation diagnostic test. The high power variable frequency design generates its own test signal independent of line frequency quality and the hardware design uses the latest technology available for digital filtering of the response signal. As a result, Automatic capacitance and tan-delta test set DELTA Series produces reliable results and stable readings in the shortest time with the highest accuracy, even in high interference substations. Adiradh Energy offering Tan delta test kit best price in Hyderabad,Bangalore ,Bhubaneswar,Chennai,Kochi, Pune, Visakhaparnam ,Coimbatore,Delhi, Mumbai,Noida,Kolkata,Ahmadabad,Hubli and Gurgaon. Delta4000 Series operates with PowerDB software for automatic testing and reporting or with Delta Control software for real-time manual testing

12 kV Insulation Diagnostic System Delta40o0 series has two configurations

DELTA4110 with external computer (not included) consists of the DELTA4100 control unit and DELTA4010 high-voltage unit
DELTA4310A touch display interface comes with onboard computer
DELTA4000 Accessories Click for more info

Tan delta system Features

Power factor test set
Automatic and manual operation
Accurate measurement results under high noise conditions as tested to 765 kV substations
Lightweight, rugged two-piece design
High noise suppression and advanced signal acquisition circuitry can handle up to 15 mA interference current or a signal to noise ratio of up to 1:20 resulting in extremely accurate and clean measurements even in the most severe conditions
Individual Temperature Correction (ITC) allows the user to estimate the actual temperature dependence of the test object by measuring tan delta over a frequency range. Mathematically calculating accurate individual temperature correction results in a more accurate measurement of the insulating material’s condition,eliminates the need for temperature correction tables
Ability to perform wide range DFR for diagnostic (1-500Hz) testing of transformer, bushings
Voltage dependence detection (VDD ) to automatically warn if test object shows signs of power factor voltage dependence

DELTA4110 Insulation Diagnostic System scope of supply

DELTA4100 control unit

DELTA4010 HV unit

High voltage lead: 21 m (70 ft) double shielded 30012H-11

Measurement lead color-coded red, 21 m (70 ft) 25572-1

Measurement lead color-coded blue, 21 m (70 ft) 25572-2

Ground lead: 9 m (30 ft) 2002-131

Input power cable 16A EU 17032-29

Input power cable 16A US 17032-28

Input power cable 16A UK 17032-30

Safety hand switch,Interlock #1, 21 m (70 ft) 1001-850

Safety foot interlock, 3m (10 ft) 1001-852

HV unit power cable, 1 m (3 ft) 2002-132

HV unit control cable, 1 m (3 ft) 2002-133

Ground lead interconnect cable, 1 m (3 ft) 2002-134

USB cable, 2 m (7 ft)

CA-USBEthernet cable,

CAT 5, 2 m (7 ft) 36798

Lead Bag for HV cable 2001-507

Lead Bag for other cables/accessories 2005-265

Software DELTA manual control 1001-981

PowerDB Lite software

Specifications of Capacitance and Tan Delta DELTA4000 Series

Input Power

90 – 264 V 45 – 66 Hz16 A maxNo loss in performance when used with portable generator.

Output Voltage :0 to 12 kV, continuously adjustable

Test Frequency Range45-70 Hz (12 kV)15-400 Hz (4 kV)1-505 Hz (250V)0.0001 Hz maximum resolution

Output Power3.6 kVA

Output Current

300 mA (4 minutes)

200 mA (30 minutes)

100 mA (continuous)

The power supply capacity can be expanded to 4 A at 12 kV using the optional Resonating Inductor, (Cat. No. 670600-1).

Measuring Ranges

Voltage:25 V to 12 kV, 1 V resolution

Current0: to 5 Amps, 0.1 μA maximum resolution. The measurement can be corrected to either 2.5 kV or 10 kV equivalents.

Capacitance: 0 to 100 μF, 0.01 pF maximum resolutionInductance: 6 H to 10 MH, 0.1 mH maximum resolution

Power factor: 0-100% (0-1), 0.001% maximum resolution

Dissipation factor: 0-100 (0-10,000%), 0.001% maximum resolution

Watt Loss0 to 2 kW, actual power, 0 to 100 kW when corrected to 10 kV equivalent. 0.1 mW maximum resolution. The measurement can be corrected to either 2.5 kV or 10 kV equivalents.

Temperature Correction

Individual temperature correction from 5°C to 50°C insulation test temperature to 20°C reference

Standard tables

As by international standards and manufacturers’ data

Accuracy

Voltage ±(1% of reading)Current ±(1% of reading)Capacitance ±(0.5% of reading + 1 pF)Inductance ±(0.5% of reading + 1 mH)Power Factor and Dissipation Factor ±(0.5% of reading + 0.02%)Watt Loss ±(1% of reading + 1mW)Frequency ±0.005% of reading

Noise Immunity

Electrostatic

15mA induced noise into any test lead with no loss of measurement accuracy at maximum interference to specimen current of 20:1

Electromagnetic

500 μT, at 50/60 Hz in any direction

Measurement

UST: Ungrounded Specimen TestingGST: Grounded Specimen Testing

PC Requirements

DELTA4110

Operating system: Windows 7, WIndows 8 and Windows 10Processor: Min Pentium 1 GHzMemory: Min 1024 Mb RAMHard drive: Min 2 Gb availableInterface: USB and Ethernet

DELTA4310A

Internal PC (provided)

DELTA4310A Provided Hardware

Touchscreen Display (ruggedized for field use)Size: 300 mm (12 in.)Resolution: 1024 x 768 (XGA)Luminance: 1600 nitsCoating: anti-glareBacklight: LEDTechnology: 4-wire resistive touchscreenMemory: 32 Gigabits (SSD)

Controls & Communication

Built-in touchscreen, 2 only USB 2.0 ports and 1 only Ethernet interface (10/100 Mbps) provided for data export, built-in printer as well as OnBoard computer remote control of the Megger TTR3XX, MTO3XX, MLR10, MWA3XX and S1/MIT series insulation testers.

Environment

Temperature

Operating: -20 to +55° C (-4 to +131° F)Storage: -50 to +70° C (-58 to +158° F)

Relative humidity

Operating and Storage: 0 to 95% non-condensing
