ATTanalyzer- Acoustic breakdown detector

Description

ATTanalyzer is a simple and effective stand-alone tool to aid in commissioning tests of gas-insulated switchgear (GIS) systems and power transformer. The ATTanalyzer reduces delays in commissioning and maintenance by locating flaws in GIS systems and transformers acoustically.

Gas-insulated switchgear systems occasionally contain flaws that go unnoticed during installation or maintenance but that lead to immediate breakdown when high voltage is applied. These flaws can include floating particles, gaseous impurities, faulty insulator discs, sharp metal burrs, or other defects. If a gas-insulated switchgear system contains such a flaw when brought on-line, sparking and breakdown occurs at the flaw, forcing de-energization and repair. Without diagnostic aids, location of the flaw can lead to costly delays and unnecessary opening of unflawed gas chambers bearing the risk of causing new imperfections, while searching for the chamber containing the flaw.Using the ATTanalyzer, the flaw can be located by mounting acoustic sensors to the outside of the GIS or transformer tank in several locations. When high voltage is applied to the GIS, if a breakdown occurs, the acoustic sensors pick up the disturbance and transmit a corresponding optical signal to the ATTanalyzer acquisition unit. The ATTanalyzer then compares the relative travel times of the sound signals to determine which sensor is the closest to the flaw.

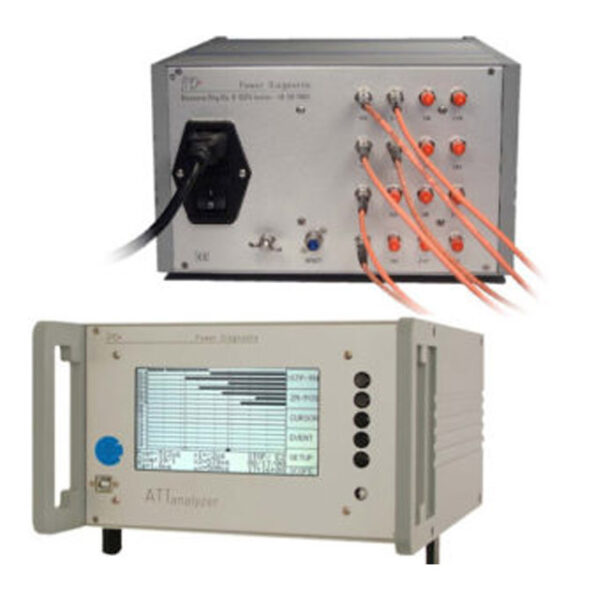

ATTanalyzer consists of a compact central acquisition unit, acoustic sensors, and sturdy fiber optic cable to connect the sensors to the acquisition unit. The stand-alone ATTanalyzer acquisition unit, mounted in a half-19-inch rack, receives and internally processes signals picked up by the sensors. The acoustic sensors for external mounting on the GIS system can be easily attached and removed for reuse. Up to sixteen sensors can be connected to the ATTanalyzer.Fiber optic cables, up to 200 meters in length, provide galvanically isolated connection of the sensors to the ATTanalyzer acquisition unit.

Breakdown detection system:

• 1 x ATTanalyzer (4-16 channels max., tbs)
• 1 x ATTanalyzer software
• 4-16 x Acoustic breakdown sensor ATX1
• 4-16 x Sensor fixture for ATX1
• 4-16 x Fiber optic cable of different lengths
• 1 x Set of cables
