Description

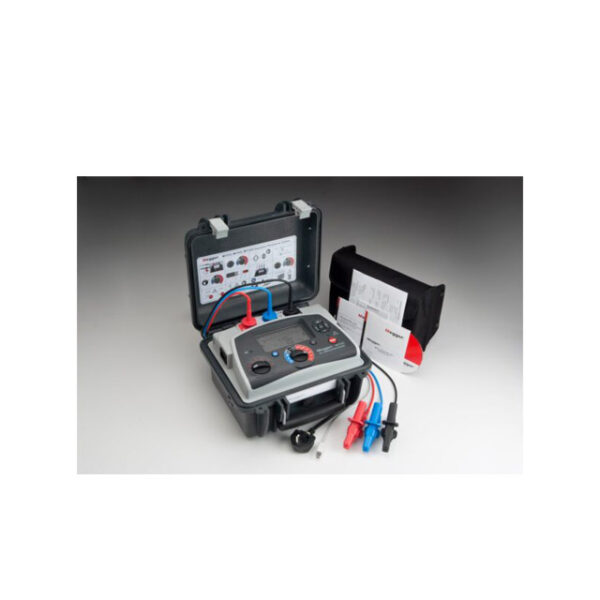

5 kV insulation resistance tester MIT525 which is compact, light ,CAT IV for the diagnostic testing and maintenance of high voltage electrical equipment. 5kV Insulation Resistance Tester MIT525 is an advanced 5kV test set for the diagnostic testing and maintenance of high voltage electrical equipment.5KV Insulation tester MIT525 is both smaller and lighter than its predecessor, making it even easier to carry and store. As well as measuring insulation resistance to 10 TΩ, the 5KV Digital HV Insulation resistance tester also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing.Adiradh Energy Pvt Ltd offering High quality of Diagnostic insulation resistance testers MIT 525 with best prices and also have Large Inventory in Stock available in India
5KV Diagnostic Insulation Resistance Tester MIT525 equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy-to-read display, making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition 5KV IR Testers the elapsed time of the test is displayed constantly removing the need for separate timer. Adiradh offering best prices for Megger MIT525 in India
5KV Megger MIT525 which provide a high level of quality testing along with prime safety, convenience and portability. MIT525 offers selectable test voltages at 250, 500, 1000, 2500, and 5000 V. The Megger MIT525 increases the functionality by permitting test voltage to be set in any 10 V increment from 50 V to 1 kV, then in 25 V steps all the way to 5 kV. 5KV Diagnostic Insulation Resistance Tester MIT525 comes with all test modes including a ramp test plus advanced memory functions with recall to screen, RTC for time/date stamp of results, and USB drive to PC/PowerDB.
5KV Insulation resistance testers are designed for distribution maintenance, commissioning, and industrial/OEM applications. Accurately perform insulation testing on power MV and HV transformers, current transformers, cables, motors and generators (stators and rotors), circuit breakers, and more. 5KV Insulation tester MIT525 Part No: 1001-939 allow you to take measurements when connected to line power/mains supply with a dead battery. The intelligent battery charging function ensures the optimal charge rate as a function of the battery level, resulting in minimum charge times.
PI PREDICTOR FUNCTION (PIp)
The Polarisation Index test can be time consuming, with a 10 minute test (30 mins on 3 phase) and with multiple items to test, any time saved is a bonus. PIp does just that. The PI predictor function uses the first part of the IR curve to predict the rest at 5 minutes into the test. The PIp can start as early as 3 minutes into the test and will stop when it is confident in the predication
Features of MIT525 -5KV Diagnostic Insulation resistance tester
- Measures up to 10 TΩ
- PI, DAR, DD, SV and ramp test
- Improved productivity – operate from line power/mains if battery dead
- Li ion battery – extended capacity, rapid charge
- Advanced memory with time/date stamp
- CATIV 600 V safety rating
- Unique locking HV insulated plugs
- No detachable clips for safety with capacitance

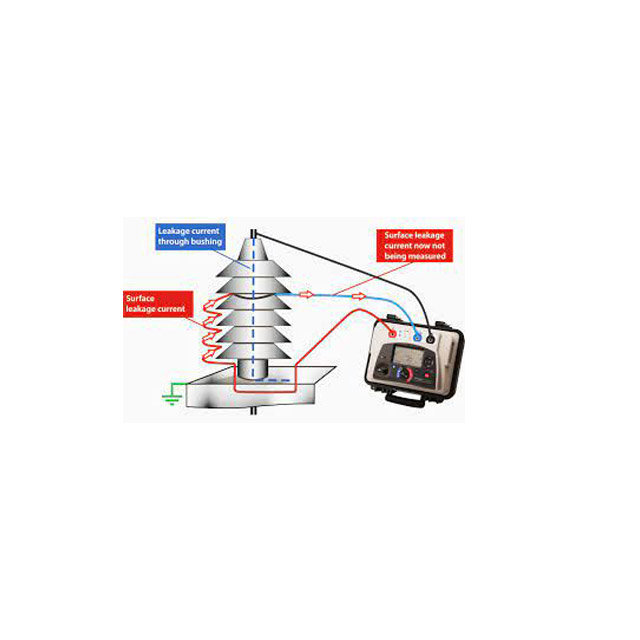

- Screened options for high noise environments
- High-quality silicon double insulated cable

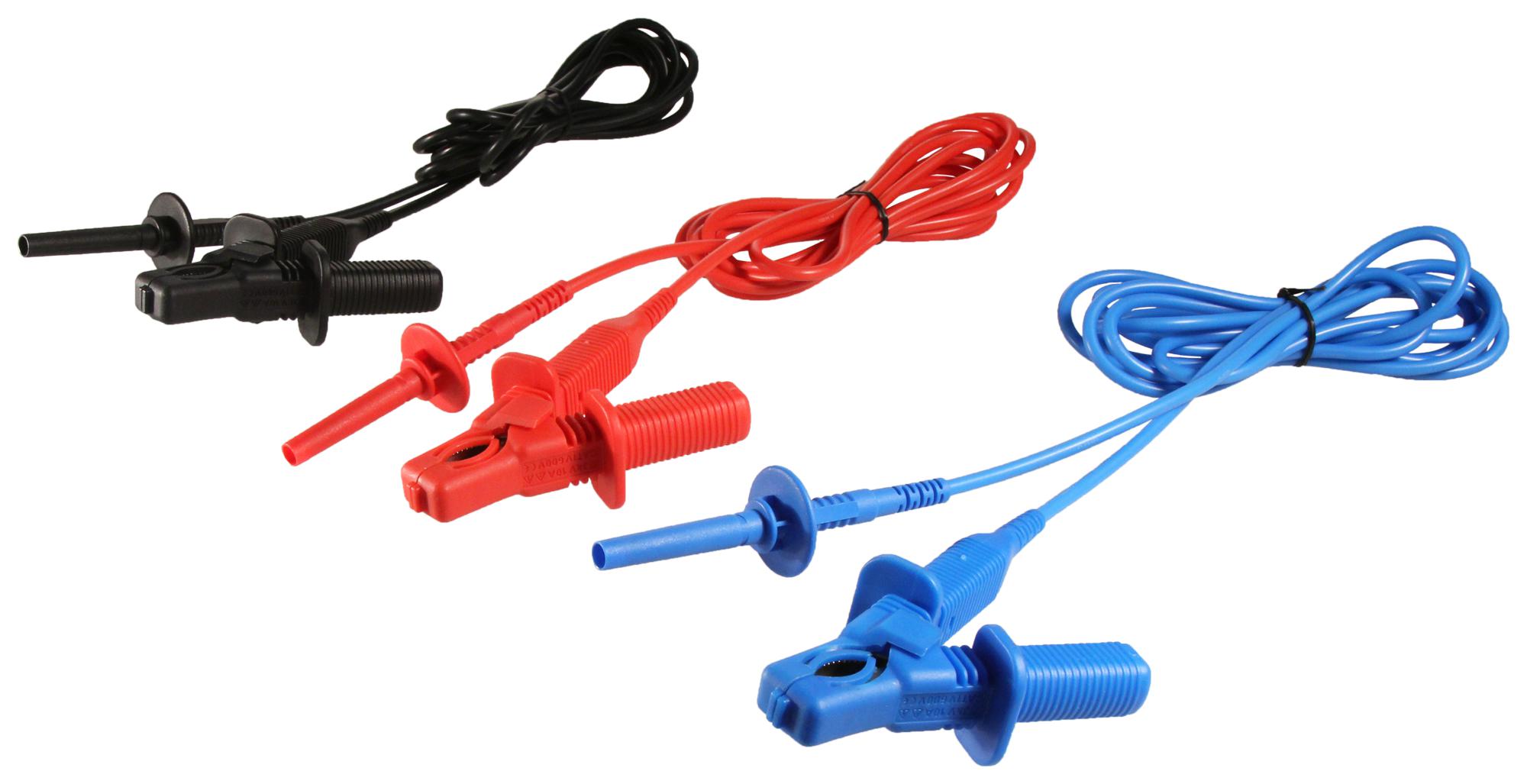

- 3 meter lead set, medium size insulated clips  insulated clips Part No: 1008-022
Scope of supply of 5KV Insulation tester MIT525
- 5KV HV Insulation tester Part No: 1001-939
- 3m test lead set crocodile lead set-1 No
- Cables bag-1 No
- Power card Cable- 1No
- Certificate` of Test and warranty -1No
- Manual -1 No
- Certificate of calibration -1 No
- CD-1No
- Safety warnings-1No
- USB Cable -1No
