5KV Insulation resistance tester-BM5200

Description

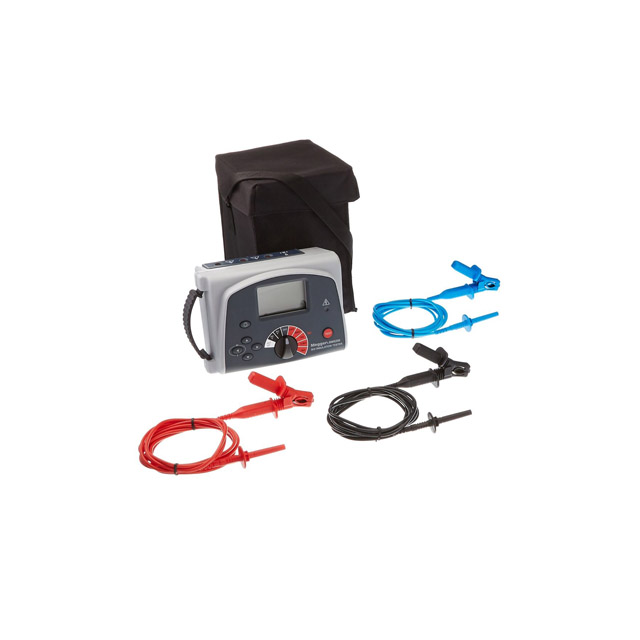

Megger BM5200 tester which  is a battery powered instrument with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial installations. DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V and 5000 V. Insulation resistance tester BM5200 in India  measuring range is 100 kΩ to 1000 GΩ. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.The guard terminal can be used to minimise the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.Three insulation resistance (IR) test modes are provided, (InS, PI and t) and available in any IR test range. In IR mode (InS) tests are initiated by pressing and holding down the TEST button for two seconds and terminated by a second press of the TEST button.A Polarisation Index (PI) mode performs a ratio metric test that calculates the ratio of insulation resistance at ten minutes to insulation resistance at one minute. The IR test timer (t) mode facilitates a single fixed time test based on the set time interval t.

For capacitive test objects the instrument will automatically discharge through an internal resistor and indicate voltage across the terminals in  range 25 V to 600 V with higher voltages indicated by >600 V. This feature will give decaying voltage indication following the testing of reactive loads. When the voltage indicator disappears it is safe for the user to disconnect the test leads. 5KV Insulation resistance tester BM5200 in India  is powered by eight 1.5 V IEC LR6 (AA) cells. Part Number of 5KV Insulation tester Megger BM5200: 1001-289

BM5200 Features

■ 1 TΩ, 1.4 mA, 5 kV digital insulation tester with digital and analogue display
■ Five test ranges; 250 V, 500 V, 1000 V,2500 V and 5000 V
■ Insulation (InS), Polarisation Index (PI) and variable timed test (t) modes
■ Selectable DC or AC (incl. frequency) voltmeter functions
■ Guard terminal to shunt surface leakage currents
■ CAT III 600 V safety rating

BM5200 Applications

Electrical insulating materials deteriorate with time leading to breakdowns and costly repair bills. Insulation resistance testers apply a regulated DC voltage across the insulation and measure current flow through it applying Ohm’s law to calculate insulation resistance. The current flows because no insulation material is perfect.5KV  Insulation resistance tester -BM5200 tester uses includes:

Product test and qualification

Installation of equipment

Routine maintenance

Problem resolutions

Insulation testing with high voltage DC affects insulation polarisation such that consecutive testing without complete discharge of the unit under test will yield different results.Care should be taken to always employ the same process and technique of connecting to and testing an insulator to be able to trend results. It is important to record temperature of the insulation as well as IR values
