Description
10 A LOW RESISTANCE OHMMETERS-DLRO10
MEGGER DLRO10 bring new standards to low resistance measurement. A fully automatic instrument, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. The DLRO10 is built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO10 uses a large, bright 4-1/2-digit LED display. Megger DLRO10 Handheld Ohmmeter, offering 2000 Ω Max, 100nΩ Resolution, Low Resistance.DLRO-10 Digital Low Resistance Ohmmeter brings new standards to low resistance measurement. It’s fully automatic instruments, selecting the most suitable test current, up to 10 A DC to measure resistance from 0.1 μΩ to 2000 Ω on one of seven ranges.
10 A LOW RESISTANCE OHMMETERS-DLRO10
- Accurate results in under three seconds
- Auto current reversal cancels standing emfs
- Fuse protected to 600 V
- NiMH battery reduces weight
- Automatically detects continuity in potential and current connections
- Visible warning of high voltages present at the terminals and also for current flowing in the test sample
- Multiple operating modes including fully automatic
- Interchangeable test lead terminations
Applications of Megger DLRO10
• Switch and contact breakers
• Aviation industry

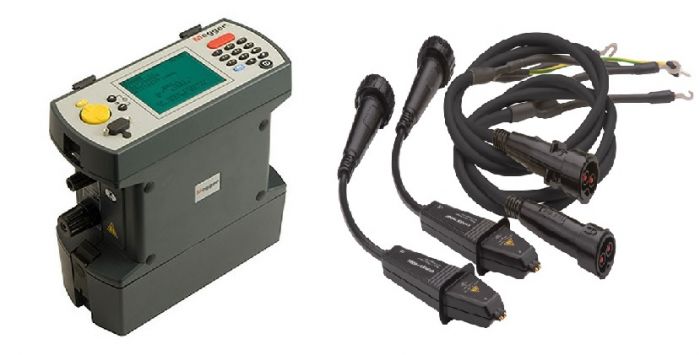

10 A MICRO-OHMMETER WITH TEST STORAGE AND DOWNLOADING-DLRO10X
- Accurate results in under three seconds
- Auto current reversal cancels standing emfs
- Fuse protected to 600 V
- NiMH battery reduces weight
- 250 mW power limit (with optional override) to avoid heating the test sample
- Automatically detects continuity in potential and current connections
- Visible warning of high voltages present at the terminals
- Visible warning of current flowing in the test sample
- Multiple operating modes including fully automatic
- Alpha-numeric keypad for entering test notes
- Users-selectable high and low limits
- Autoranging with manual option
- Printer output and memory
- New interchangeable test lead terminations
Applications of Megger DLRO10X
• Switch and contact breakers
• Aviation industry
